Product details
The Ubiquiti USW-16-PoE is a powerful and fully managed Layer 2 switch designed to deliver reliable network performance for businesses, offices, and enterprise environments. With 16 Gigabit Ethernet ports, PoE+ capability, and seamless integration with the UniFi Network Controller, this switch offers flexibility, efficiency, and professional-grade performance.
Moreover, it is built to support modern networking needs by providing stable connectivity for access points, IP cameras, VoIP phones, and other powered devices.
Powerful Connectivity and PoE+ Support

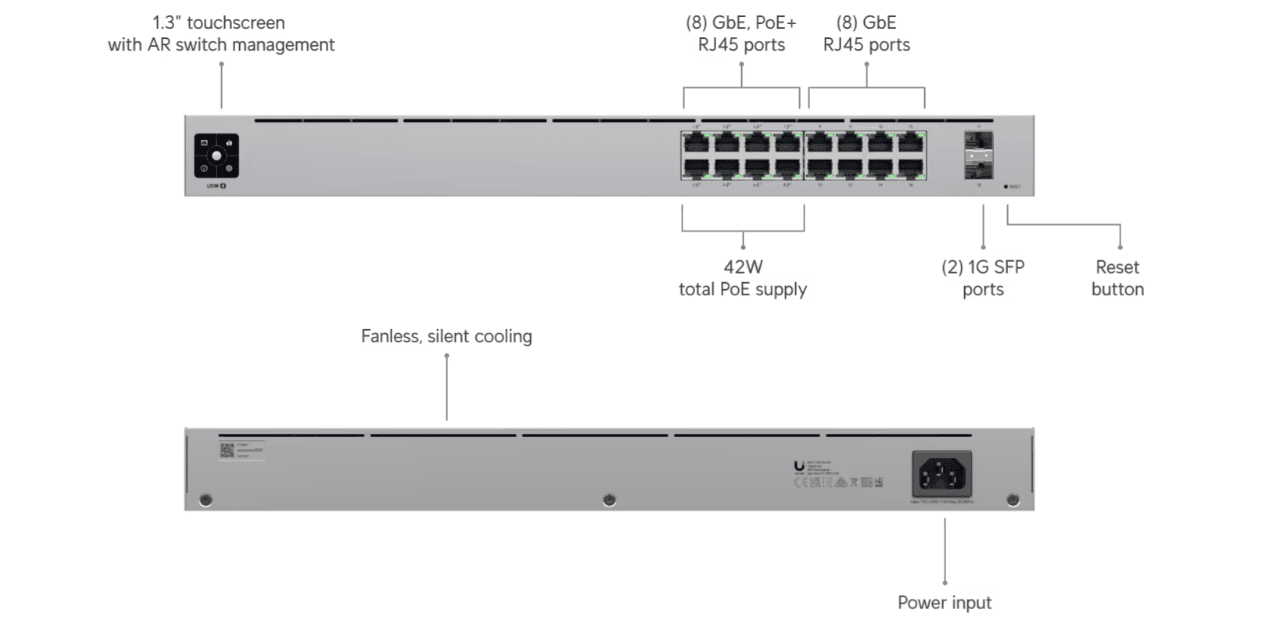

The Ubiquiti USW-16-PoE features 16 high-speed Gigabit Ethernet ports, including 8 PoE+ ports and 8 standard non-PoE ports. As a result, it allows you to power compatible devices directly through Ethernet without requiring separate power adapters.
Key connectivity features include:
-
16 × 10/100/1000 Mbps RJ45 ports
-
8 × PoE+ ports (IEEE 802.3at)
-
Total PoE power budget: 42W
-
Up to 32W maximum per PoE port
Therefore, this switch is ideal for powering UniFi access points, surveillance cameras, and other network devices.
High Performance Switching
The Ubiquiti USW-16-PoE delivers strong network performance with a switching capacity of 36 Gbps and a throughput of 18 Gbps. Consequently, it ensures smooth data transfer and stable connectivity even in busy network environments.
Additionally, it includes 2 × 1G SFP uplink ports that provide flexible expansion and fast backbone connectivity.
Silent and Professional Design
One of the main advantages of the Ubiquiti USW-16-PoE is its fanless cooling system, which ensures completely silent operation. Because of this, it is perfect for offices, meeting rooms, and environments where noise must be minimized.
Furthermore, the switch is designed in a 1U rack-mountable form factor, allowing easy installation in server racks and network cabinets.
Centralized Management with UniFi Controller
It’s is fully managed through the UniFi Network Controller. This allows administrators to monitor performance, configure settings, and manage devices from a centralized interface.
As a result, network management becomes simpler, more efficient, and highly scalable.
Technical Specifications
-
Model: Ubiquiti USW-16-PoE
-
Ports: 16 × Gigabit RJ45
-
PoE Ports: 8 × PoE+ (802.3at)
-
Non-PoE Ports: 8
-
Uplink Ports: 2 × 1G SFP
-
Switching Capacity: 36 Gbps
-
Throughput: 18 Gbps
-
PoE Budget: 42W total
-
Max PoE per port: 32W
-
Power Input: 100–240V AC
-
Operating Temperature: −5 °C to 40 °C
-
Dimensions: 442 × 200 × 44 mm
-
Form Factor: 1U Rack Mount
-
Cooling: Fanless (Silent)
Conclusion
The Ubiquiti USW-16-PoE is a reliable and efficient managed switch designed for professional networking environments. With strong performance, PoE+ support, silent operation, and easy UniFi integration, it provides an excellent solution for building scalable and organized network infrastructures.
